RadioLink T8FB 2.4GHz 8ch Transmitter SBus PPM PWM R8EF Receiver Combo Remote Control For Plane Quadcopter Mode1 Mode2-in Parts & Accessories from Toys & Hobbies

Scroll to product details, material & care and sizing

$ 33.25

Add to cart Add to wishlist

Term:
6ch transmitter, radiolink, ia6b, Wholesale plane rc, Wholesale radiolink t8fb, Wholesale drone with camera in quadcopter, Wholesale ia6b, Wholesale transmitter & receivers, Wholesale 2018 transmitter receiver, Wholesale at10 radiolink, Wholesale garmin hr, Wholesale brushless set,

RadioLink T8FB 2.4GHz 8ch Transmitter SBus PPM PWM R8EF Receiver Combo Remote Control For Plane Quadcopter Mode1 Mode2 Details & Specification :

Item Specifications
Use Vehicles & Remote Control Toys
Material Composite Material
Model Number T8FB
RC Parts & Accs Transmitters
Brand Name XTORI
Remote Control Peripherals/Devices Remote Controller

Package included:

1 * T8FB 2.4G 8CH Remote Control System Transmitter
1 * R8EF Receiver
1 * OTG cable



Features:

1. S-BUS, PPM and PWM signal output at the same time

Compatible with Futaba S-BUS, also supports cable connection input one by one, S-BUS, PPM and PWM signals are possible to use at the same time.

2.Custom designed firmware

Be applicable to multi-copter, fixed wing, helicopter.


3. Inheritance industrial designing
Cooperate with the professional designer of AT9. T8FB adds innovation and independent design concept and can be a perfect choice for your drone.

4. Humanized operation
On the basic experiences of modelers, T8FB, simplify the operation, makes it easy to use even without illustration.

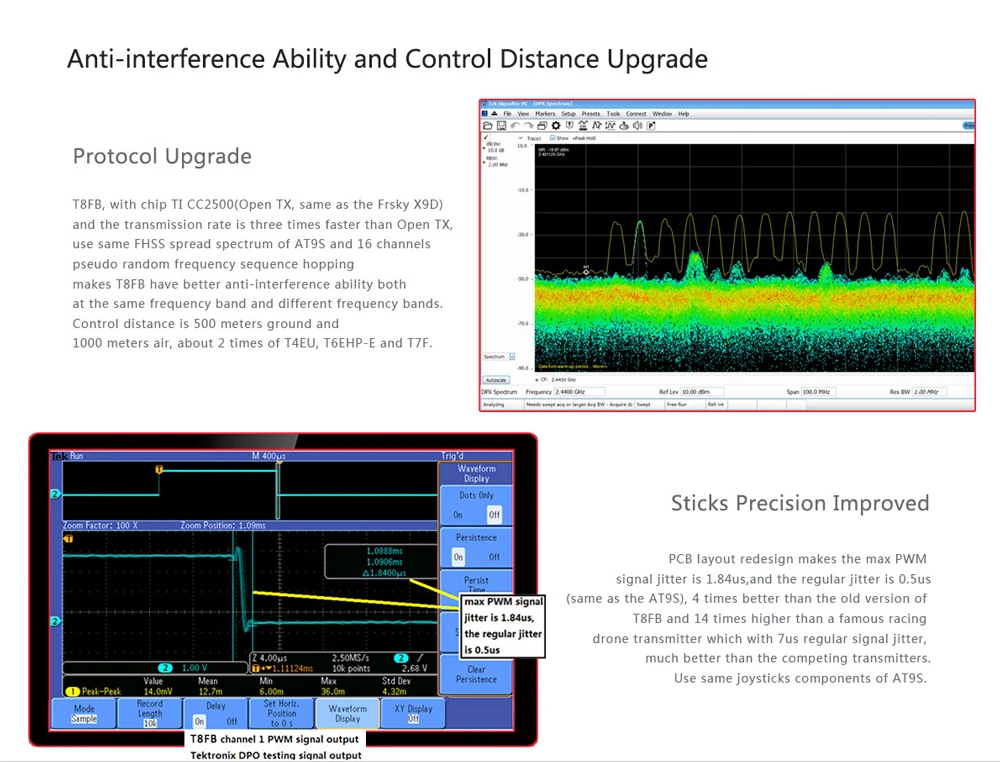

5. Long-tested anti-interference
Follows the technology of wireless spread spectrum used by T7F, makes it possible to control freely in the condition of same frequency interference.

6. Incredible price
Incredible price own high-level specification.

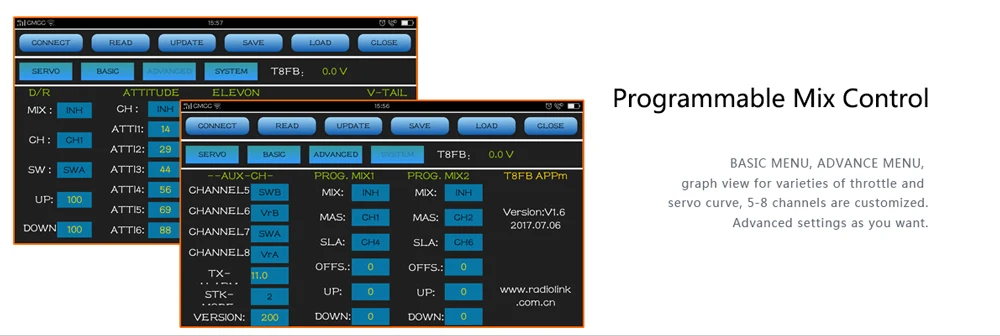

You can download all manual, software, app, and firmware from below 2 links:

http://radiolink.com.cn/doce/kejizonglan.html

http://radiolink.com.cn/doce/lingxiankeji.html

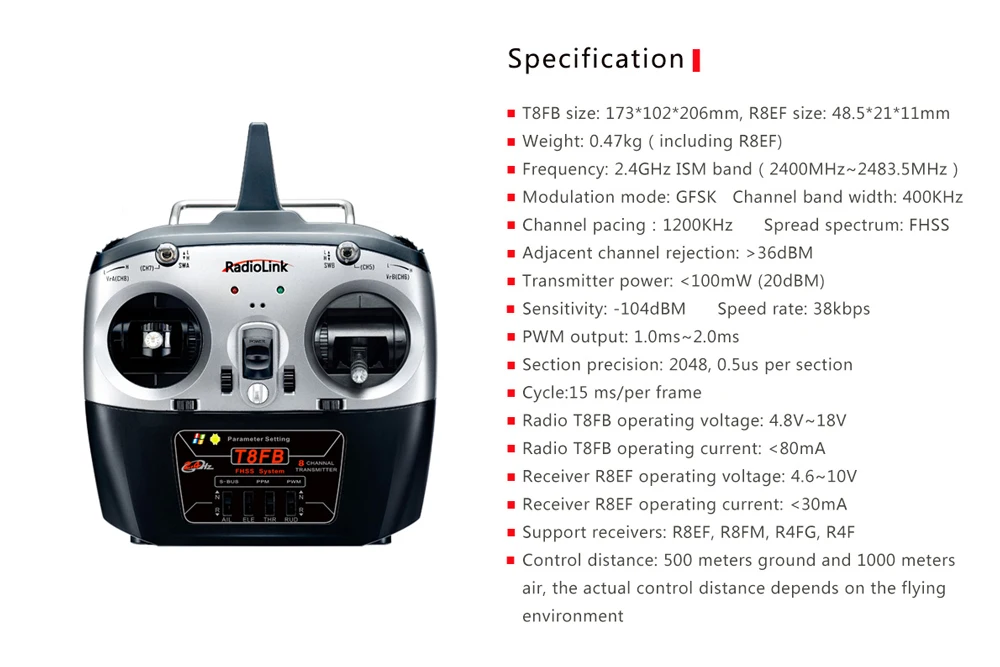

Specification:

T8FB Technical Parameters

  • Size: T8FB - 173*102*206mm, R8EF - 48.5*21*11mm.
  • Weight: 0.47kg(including R8EF)
  • Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
  • Modulation mode: GFSK
  • Channel bandwidth: 400KHz
  • Band width:1200KHz
  • Spread spectrum: FHSS
  • Adjacent channel rejection: >36dBM
  • Transmitter power: <100mW (20dBM)
  • Sensitivity: -104dBM
  • Speed rate:38kbps
  • PWM output: 1.0ms~2.0ms
  • Section precision: 2000, 0.5us per section
  • Cycle:15 ms/per frame

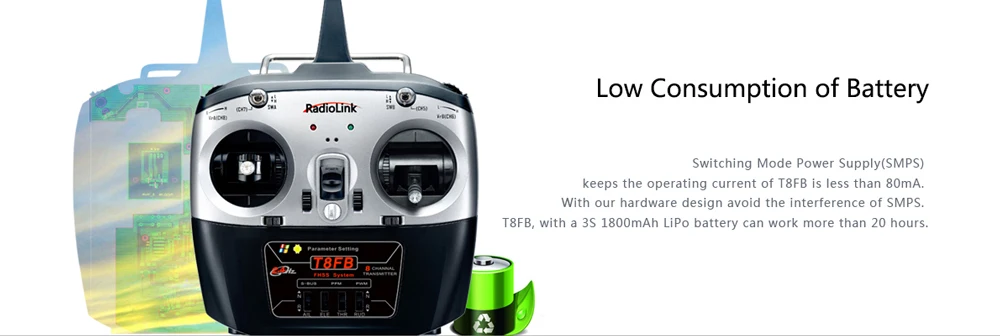

  • Radio T8FB operating voltage: 4.8V~18V
  • Radio T8FB operating current: <110mA
  • Receiver R8EH operating voltage: 4.6~10V
  • Receiver R8EH operating current: <30mA
  • Control distance: more than 1000 meters air, the actual control distance depends on the flying environment.

R8EF Receiver:
  • Channel: 8CH
  • Operating voltage: max 10V.
  • Operating current: 19-25mA(input voltage 5V)
  • Size: 48.5*21*11mm
  • Weight: 7g
  • Section precision: 4096
  • Signal output: S-BUS, PPM and PWM
  • signal mode: Green LED, output 8 channel PWM signal.
  • SBUS/PPM signal mode: Both red and green LED on, CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.



Requires:

4 x AA Type Battery For Operation
